やりたいこと
以前、アプリ画面上にあるコントロール類を、テーマ(ダーク/ライト/ハイコントラスト)に沿った色でにするということをした。
今回は、アプリ自身で、自分のテーマを変更できるということを下記の動画を見て知ったので、それを試してみる。
前提
- Windows10 Home 21H1 19043.1706
- VisualStudio2022 Community 17.1.4
- WinUI3.0
- Windows App SDK 1.0
- 2022年5月の時点で調査実施
サンプルコード
<Window x:Class="ThemeChangeJikken.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable="d"> <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}"> <StackPanel Orientation="Vertical" HorizontalAlignment="Center" VerticalAlignment="Center"> <Button Click="myButton_Click">今のテーマを取得</Button> <Button Click="Button_Click_Light">テーマを切り替え(ライト)</Button> <Button Click="Button_Click_Dark">テーマを切り替え(ダーク)</Button> <Button Click="Button_Click_Default">テーマを切り替え(Default)</Button> <TextBlock Name="tbText"/> </StackPanel> </Grid> </Window>
using Microsoft.UI.Xaml; using System.Diagnostics; namespace ThemeChangeJikken { public sealed partial class MainWindow : Window { public MainWindow() { this.InitializeComponent(); } // 今のテーマを取得 private void myButton_Click(object sender, RoutedEventArgs e) { if (this.Content is FrameworkElement fe) { Debug.WriteLine(fe.ActualTheme.ToString()); tbText.Text = fe.ActualTheme.ToString(); } } // テーマを設定(ダーク) private void Button_Click_Dark(object sender, RoutedEventArgs e) { if (this.Content is FrameworkElement fe) { fe.RequestedTheme = ElementTheme.Dark; } } // テーマを設定(ライト) private void Button_Click_Light(object sender, RoutedEventArgs e) { if (this.Content is FrameworkElement fe) { fe.RequestedTheme = ElementTheme.Light; } } // テーマを設定(PCのテーマ設定に合わせる) private void Button_Click_Default(object sender, RoutedEventArgs e) { if (this.Content is FrameworkElement fe) { fe.RequestedTheme = ElementTheme.Default; } } } }
動かしたのがこちら
コードについて
WindowのContentのActualThemeを見ると、今のテーマがわかる。
RequestedThemeに設定したいテーマを入れると、テーマを変更できる。
背景だけは、Fluent-xaml-theme-editorのreadmeにある通り、背景の色は、自分で設定しないといけない。今回は、「ApplicationPageBackgroundThemeBrush」を一番外のstackpanelにセットした。
(Lastly, don’t forget to set the background color of your page to the RegionColor
・・・・のあたり)
※「ApplicationPageBackgroundThemeBrush」は、C:\Program Files (x86)\Windows Kits\10\DesignTime\CommonConfiguration\Neutral\UAP\10.0.22000.0\Generic\generic.xaml
に定義されてる。
アプリのテーマ/コントロールのテーマ
今回やっているのは「コントロールのテーマ」の変更なので、「アプリ全体のテーマ」とはまた別っぽい。

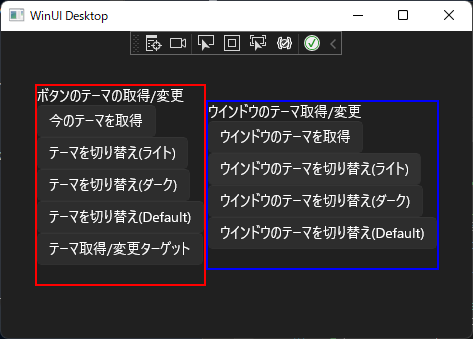

なので、今回「Window」というコントロールのテーマを変えたので、例えばWindowの中のある一つのボタンだけのテーマを変える、とかもできる。 画面内のボタンのテーマだけを変えてみたのがコレ。

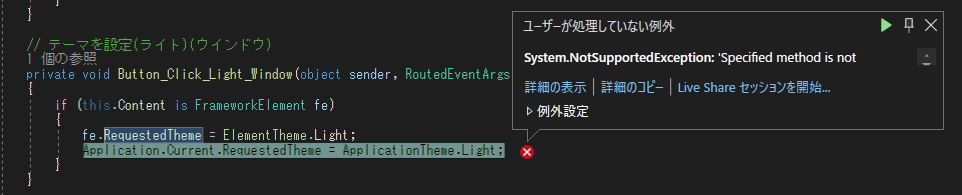

あと、まだ未検証なのだが、「アプリ全体のテーマ」を変えるには、Application.Current.RequestedTheme)というのを使うっぽい。
「ElementTheme Enum の Default」がなんなのか?

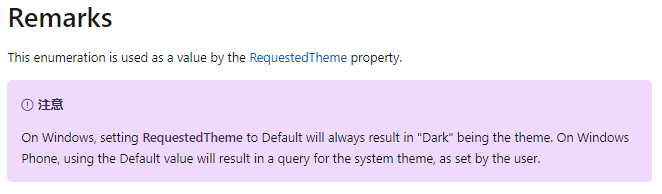

Windowsでは、RequestedThemeをDefaultに設定すると、常に「Dark」で、Windows Phoneでは、デフォルト値を使用すると、ユーザーが設定したシステムテーマになるとある。(ここでの「Windows」はデスクトップアプリで、「Windows Phone」は、パッケージしたアプリかな) →こちら

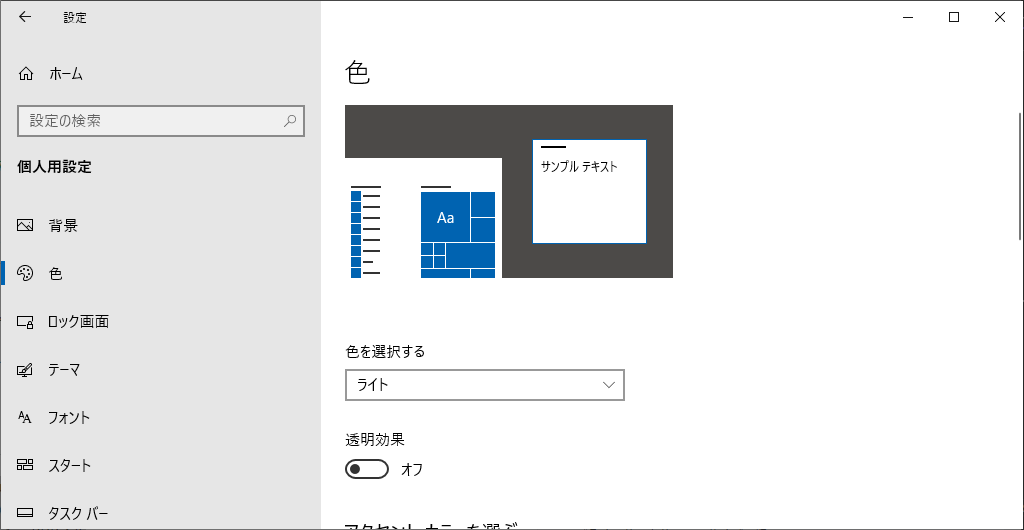

今回実験した、「前提」に書いた環境で試した限り、「Default」は、Windowsの「色」の設定の値をとってきている。
参考
アプリのテーマを変えれると知ったきっかけ動画
https://www.youtube.com/watch?v=w2XdbyNrXBQ
FrameworkElement.RequestedTheme Property
ElementTheme Enum
https://docs.microsoft.com/ja-jp/uwp/api/windows.ui.xaml.elementtheme?view=winrt-14393
